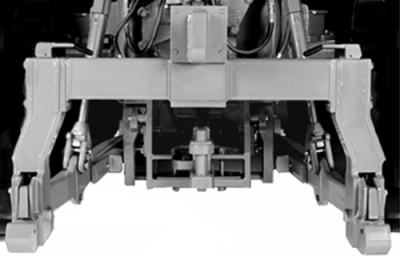

Hitch Conversion-Convertible Quick Coupler

Quick-coupler is convertible to Category 4 or Category 4N. Use Category 4 whenever possible, especially for heavy loads. The greater width gives more strength.

NOTE: Your John Deere Dealer can supply parts to adapt Category 4 hitch to Category 4N implements.

Use following procedure to convert Quick-coupler:

RW26137

AG,RF30435,2127 -19-10OCT02-1/4

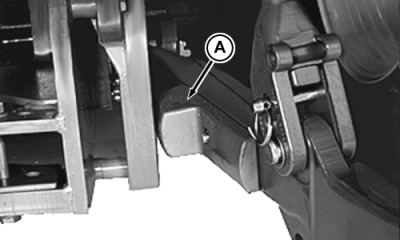

1. Turn thick ends (A) forward on draft link bumpers for Category 4; thin ends forward for Category 4N.

2. Loosen rear cap screw and remove forward cap screw. Pivot bumper on rear cap screw. Reinstall front cap screw. Tighten cap screws securely.


A-Draft Link Bumper

RW56108A

AG,RF30435,2127 -19-10OCT02-2/4

3. Support center of quick-coupler.

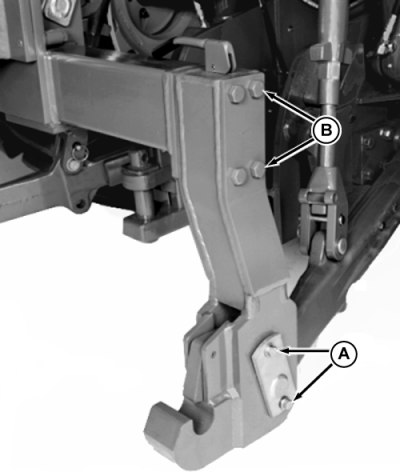

4. Remove pin retaining bolts (A) and pins from draft link.

5. Remove side member cap screws (B).


A-Retaining Bolts
B-Cap Screws

RW56109A

AG,RF30435,2127 -19-10OCT02-3/4

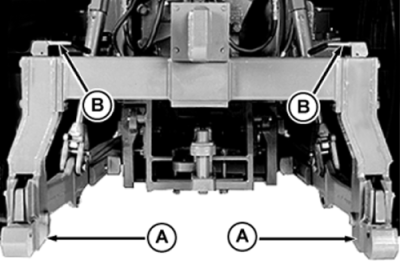

6. Switch ends with quick-coupler side members (A) (left member to right end and right to left). Tighten cap screws securely.

7. Turn latch handles (B) inward.


A-Side Members
B-Coupler Latch Handles

RW26140
