Heavy Duty Drawbar Load Limitations-If Equipped

IMPORTANT: Heavy duty drawbar support must be used when maximum static vertical load exceeds 2043 kg (4500 lb).

Maximum Static Vertical Drawbar Load
Short Drawbar Position 4900 kg (11,000 lb)
Long Drawbar Position 4082 kg (9,000 lb)

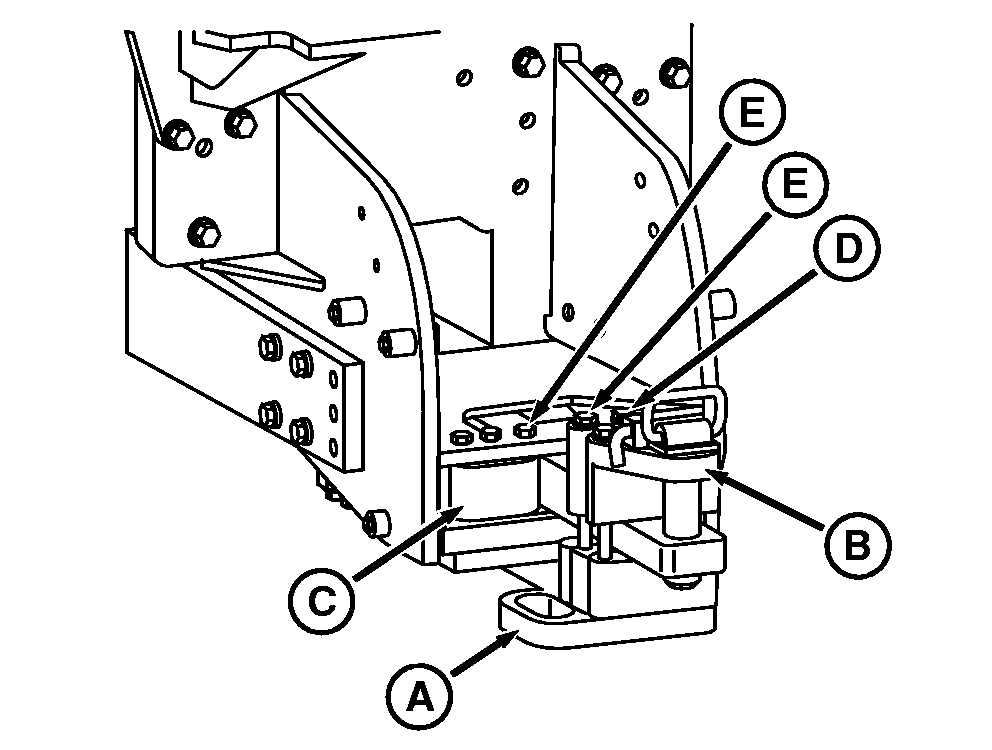

Attach drawbar brace (A), hammerstrap (B) and spacer block (C) using capscrews (D) and (E).

RXA0070703


A-Drawbar Brace
B-Hammerstrap
C-Spacer Blocks
D-Cap Screws, M22
E-Cap Screws, M20

Item Measurement Specification
Torque Specifications

M20 Cap Screws

Torque 610 N·m (450 lb-ft)

M22 Cap Screws

Torque 750 N·m (553 lb-ft)

OU1092A,0000002 -19-25SEP03-1/2

IMPORTANT: Drive slowly when moving heavy draft loads.

IMPORTANT: Clamp plate must be installed when hammerstrap is not used.

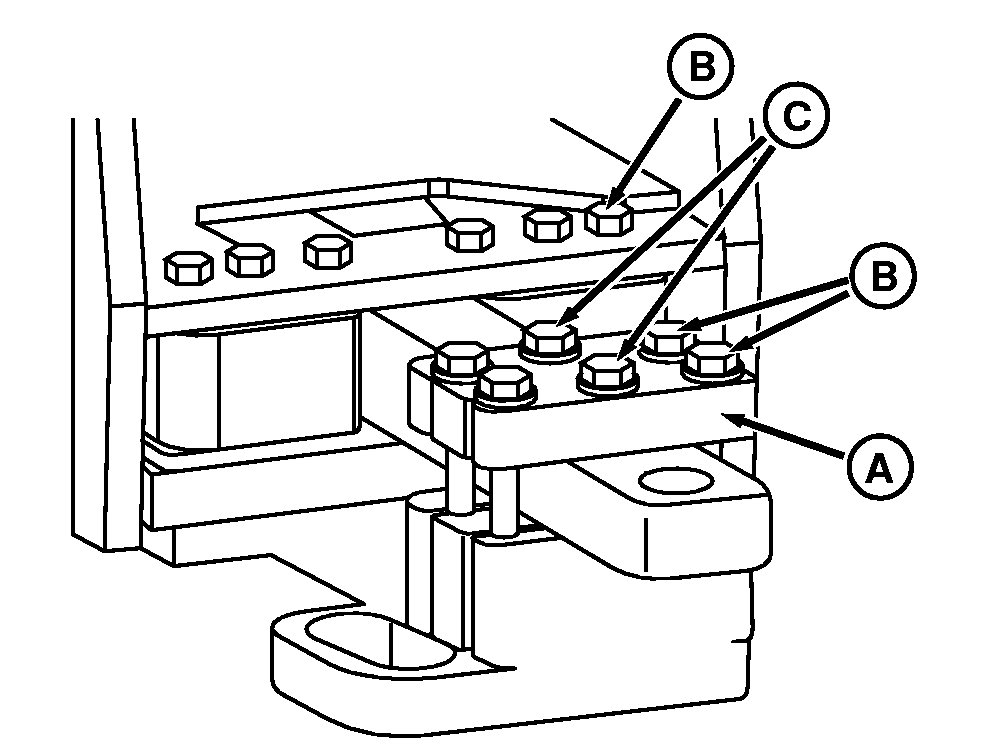

Install clamp pate (A) using cap screw (B) and (C).

RXA0070704


A-Plate
B-Cap Screws, M22
C-Cap Screws, M20

Item Measurement Specification
Torque Specifications

M20 Cap Screws

Torque 610 N·m (450 lb-ft)

M22 Cap Screws

Torque 750 N·m (553 lb-ft)

OU1092A,0000002 -19-25SEP03-2/2
