Inspect and Clean Fuel Sump ScreenNOTE: Early model tractors were not equipped with a sump screen. Late models tractors with sump screen should not require service unless fuel supply is disrupted due to contaminates in tank.

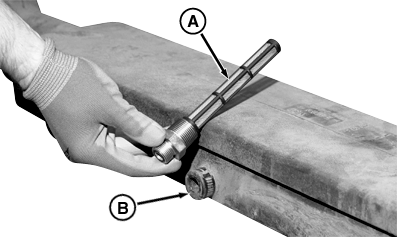

IMPORTANT: If adaptor is removed, clamp should only be loosened slightly. If clamp is removed plastic boss could relax making it difficult to reinstall adaptor. Adaptor has a pipe thread which seals with fuel tank. Apply loctite 30558 to adaptor prior to reinstalling in tank. 1. Remove adaptor and screen (A) from threaded boss (B) on crossover tank. 2. Clean or replace screen as necessary. |
|
CAUTION:
Fuel tanks must be completely drained before removing sump screen.
OU1092A,0000007 -19-25SEP03-1/1 |
