Adjusting Armrest Control

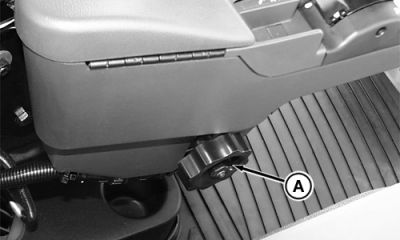

Push in and turn knob (A) to move console fore or aft and up and down (early version).

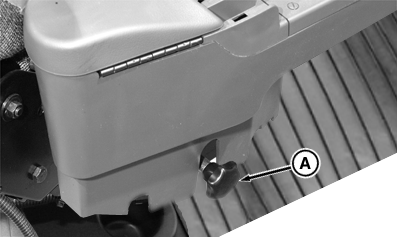

Loosen knob (A) to move console up or down, at a 45 degree angle. Tighten knob to lock in place (late version).

A-Armrest Adjustment Knob

OU1092A,0000017 -19-26SEP03-1/1
