Standard Hydraulic System Warm-Up

Avoid operating the tractor under load until hydraulic system has warmed up.

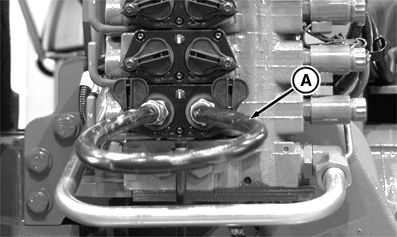

Install jumper hose (A) into the number one SCV coupler.

Shift transmission to PARK position and operate engine at 1500 rpm.

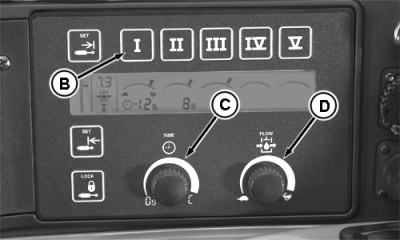

Push switch on SCV setup panel for number one SCV (B). Turn time control knob (C) to (continuous) detent position "C".

Pull SCV I lever to extend detent position.

Push switch on SCV setup panel for number two SCV and turn time control knob to continuous detent position.

Pull SCV II lever to extend detent position.

Select SCV I and turn oil flow rate knob (D) counterclockwise until engine is slightly loaded (approximately 7.0-7.2).

Return SCV I and II levers to neutral position, after the hydraulic system has warmed.

NOTE: Hydraulic oil warm-up temperature of 50°C (122°F) is recommended for continuous use applications, such as air seeders.

A-Jumper Hose
B-Number One SCV
C-Time Control Knob
D-Oil Flow Rate Knob

OU1092A,0000020 -19-26SEP03-1/1
