Checking Park Brake Pads, Caliper and Rotor (Serial No.-011407)

Inspect brake pads (B) for wear. Replace pads when
2 mm (5/32 in.) thickness remains.

Check caliper (A) for free movement.

Inspect rotor (C) for wear.

Park brake parts should be repaired or replaced immediately by your John Deere Dealer if found defective.

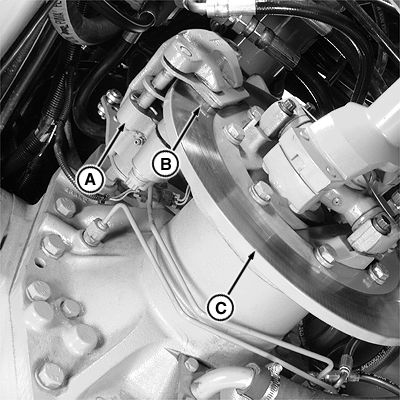

A-Caliper
B-Brake Pads
C-Rotor
