Replacing Hydraulic Filter

SERVICE INTERVAL -

INITIAL - 100 HOURS
SCHEDULED - 750 HOURS *

* Interval can vary according to operating conditions



Replace standard hydraulic filter (A) and secondary filter (B) for High Flow, if hydraulic functions are slow or if indicator light comes on. Install new filter(s) and tighten one half turn after seal contacts filter housing base.

Check reservoir oil level and fill as required.


A-Hydraulic Filter
B-Secondary Hydraulic Filter

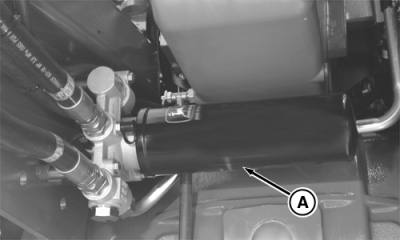

RXA0052030

Standard Hydraulic Filter

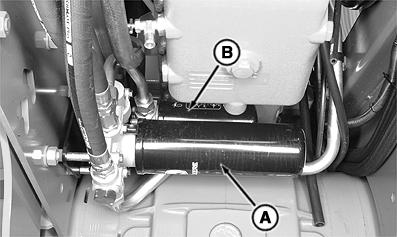

RXA0065037

High Flow Hydraulic Filters

OU1092A,000002C -19-26SEP03-1/1
