Replacing Motor Seal Drain Filter
| SERVICE INTERVAL - ANNUALLY * |
| |
| * Interval can vary according to operating conditions |
Replace motor seal drain filter (A).
Install new filter and tighten one half turn after seal contacts filter housing base.
Check reservoir oil level and fill as required.

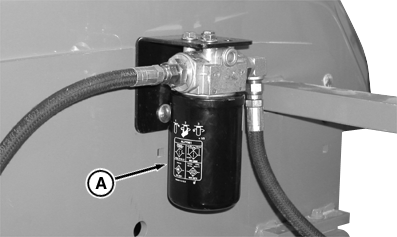

A-Motor Seal Drain Filter
|
