Lubricating Heavy-Duty Gudgeon Bearings-If Equipped

Lubricate heavy-duty gudgeon front bearing grease fittings (A) and (C) and rear bearing grease fitting(s) (B) (each side).

Use John Deere HD Grease as specified in Fuels, Lubricants and Coolant Section.

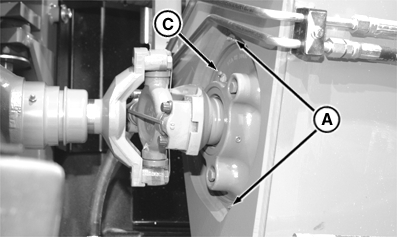

A-Front Gudgeon Bearing Fittings

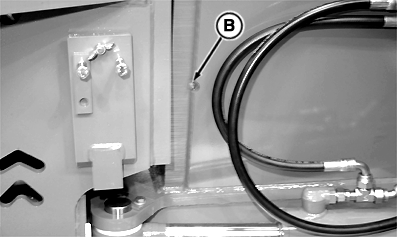

B-Rear Gudgeon Bearing Fitting

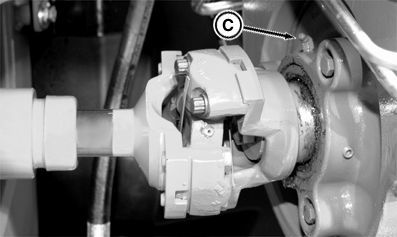

C-Front Gudgeon Bearing Fitting

OU1092A,000002D -19-26SEP03-1/1
