Changing Engine Oil and Filter-9220-9320-9420-9520

SERVICE INTERVAL

INITIAL - 100 HOURS
SCHEDULED - 250 HOURS *

* Interval can be extended to 375 hours if PLUS-50 oil and a John Deere filter are used



IMPORTANT: Change engine oil every 125 hours if diesel fuel has a sulfur content greater than 0.5 percent.

Operate engine to warm oil. Stop engine. Turn crankcase drain fitting (A). Tighten fitting after oil drains out.

NOTE: Oil flow can be controlled by attaching a hose to the drain fitting.

Remove filter (B). Remove old packing and clean filter mounting surface. Apply a thin film of oil to new packing and install new filter. Hand-tighten filter. Do not overtighten.

Refill crankcase with seasonal viscosity grade oil. (See Fuels, Lubricants, and Coolant Section.)

Capacities with Filter

9220-9320-9420-9520 ... 42 L (11 gal)




Start engine and check for leaks.

Stop engine. Recheck oil level.

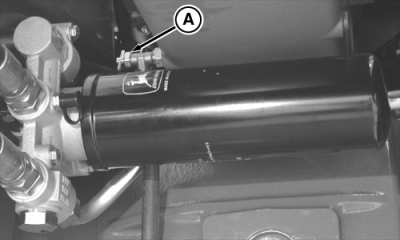

RXA0052006
RW56164A


A-Engine Drain Fitting
B-Oil Filter

RW24911,000000D -19-06NOV01-1/1
