Installing Clevis Assembly

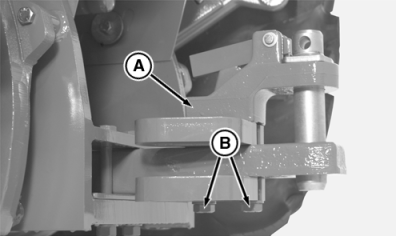

Clevis assembly (A) must be attached only to the top of the drawbar. Tighten two cap screws (B).

Clevis Cap Screws - Specification

Cap Screw -Torque 750 N·m (553 lb-ft)


A-Clevis Assembly
B-Cap Screws

RXA0051684

RW24911,0000019 -19-10OCT02-1/1
