Transporting on Carrier

The best method of transporting a disabled tractor is to haul it on a flatbed carrier.

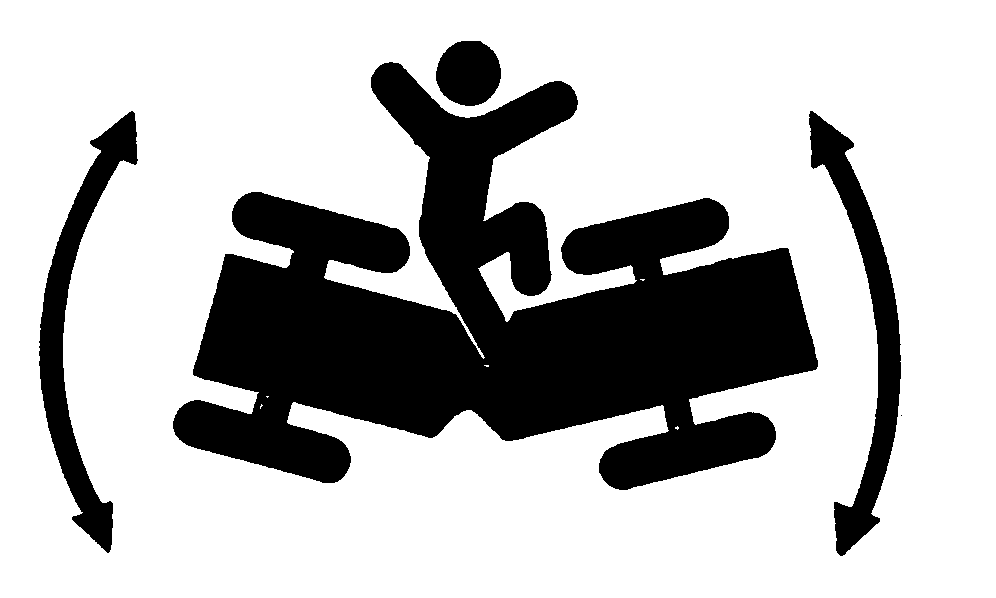

CAUTION: Stop engine and remove key before working in hinge area.

IMPORTANT: Install hinge lock, originally equipped with tractor, on hinge cylinders before transporting tractor.

Steer tractor straight ahead to install hinge lock (A).

Chain tractor to carrier securely. Drive slowly.

IMPORTANT: Be sure hinge lock is removed from hinge area before operating tractor.

Store hinge lock on tractor as shown (B).

A-Hinge Lock
B-Hinge Lock Storage

RW24911,000002F -19-10OCT02-1/1
