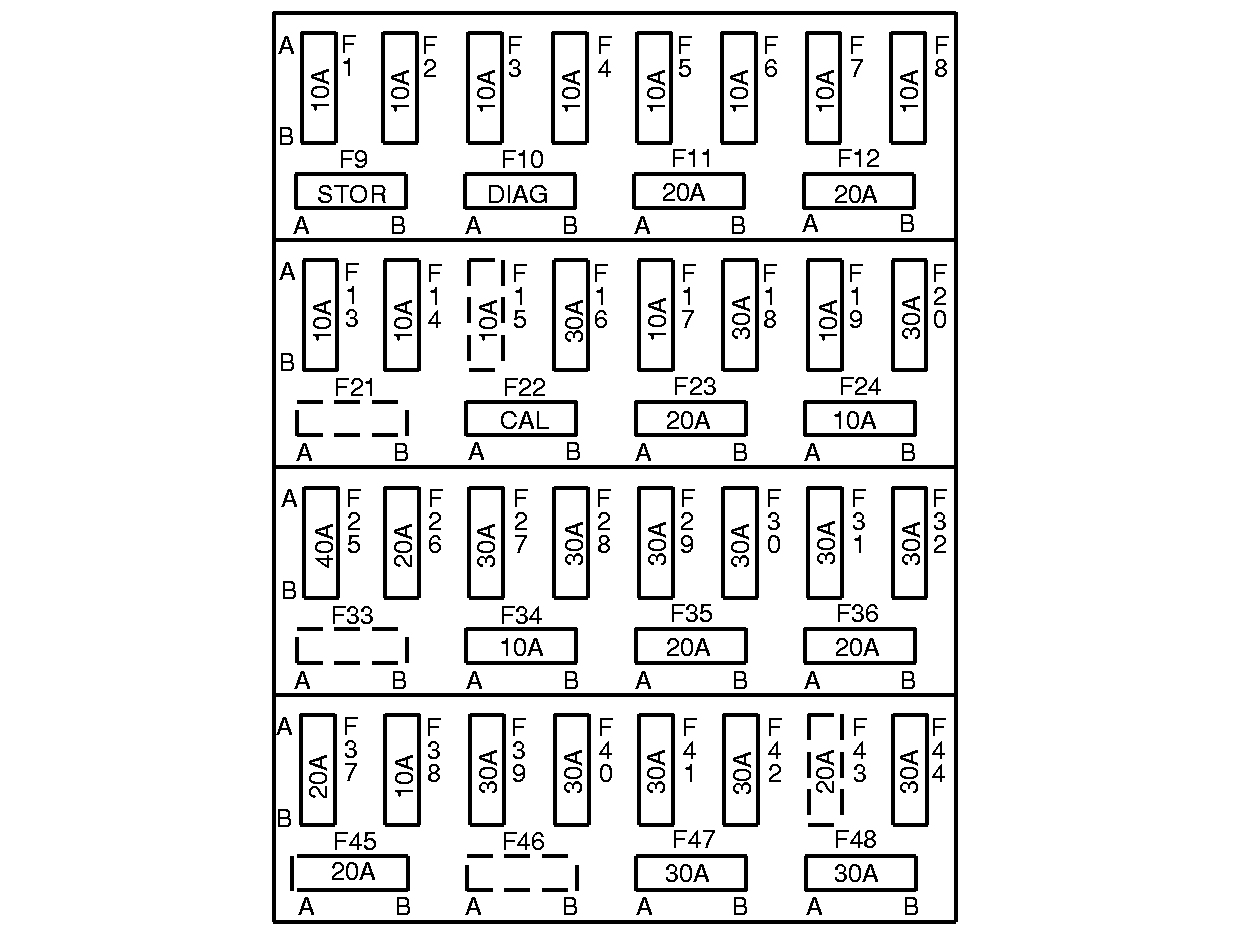

F1-Central Control Unit (CCU)
F2-Instrument Control Unit (ICU), Warning Horn, Decelerate Switch, Brake Pedal Switch, SCV Set-Up Panel
F3-Armrest Control Unit (ACU)
F4-Cornerpost Display, Performance Monitor
F5-Hitch Control Unit (HCU) and SCV I
F6-SCV 2-3
F7-SCV 4-5 Control Unit (SCo)
F8-Not Used
F9-Diagnostic Fuse Storage
F10-Diagnostic Calibration
F11-Alternator, Starting Aid
F12-Engine Control Unit (ECU)
F13-Active Seat Control Unit (ACU)
|
F14-Sensor Power, Radar Sensor
F15-Reverse Direction Sensor Power (MST)
F16-Diagnostic Connector (Switched)
F17-Diagnostic Connector (Unswitched)
F18-Key Switch
F19-Radio, Clock, Dome Light, Horn, Turn Signal Switch, Hi/Low Beam Switch
F20-Light Switch
F21-Not Used
F22-Calibration Only
F23-18 Speed Powershift Control Unit (PCU)
F24-Radio, Clock, ICU Backlighting, and Right Console Light
F25-Heating, Ventilating, and Air Conditioning
|
F26-Pressurizer Blower Motor
F27-Front Grille Spot light
F28-Wiper Circuit
F29-Front Grille Floods and Beacon Light
F30-Roof Floods (optional)
F31-7-Way Accessory Outlet (Floods)
F32-Warning Lights and Switch, Turn Signal Lights
F33-Not Used
F34-18 Speed Powershift Control Unit (PCU)
F35-Left Tail Light
F36-Right Tail Light
F37-Not Used
F38-Operator Presence Switch, Ride Zone Protector
F39-7-Way Accessory Outlet
F40-18 Speed Powershift Control Unit (PCU)
|
F41-Convenience Outlets and Junction Blocks, Field Office, Auxiliary Power Strip, and Lighter
F42-Hi/Lo Beam Lights
F43-Engine Control Unit (ECU)
F44-Rear Fender Flood Lights
F45-Seat Control Power, Radio Clock
F46-Not Used
F47-Convenience Outlets and Junction Blocks (Left Side), Business Band Pre-wire, Field Office
F48-Convenience Outlets and Junction Blocks (Right Side), Auxiliary Power Strip
|
