Vehicle Monitor
|
|
A "PRIORITY" is the STOP ENGINE, SERVICE ALERT, or INFORMATION indicators. A "SYSTEM" refers to engine, transmission, hydraulic, electrical, or axle indicators. A "FUNCTION" refers to pressure, temperature, level, or filter. A "STATUS" indicates operational mode. |
RW29387,00000EC -19-23OCT02-1/2 |

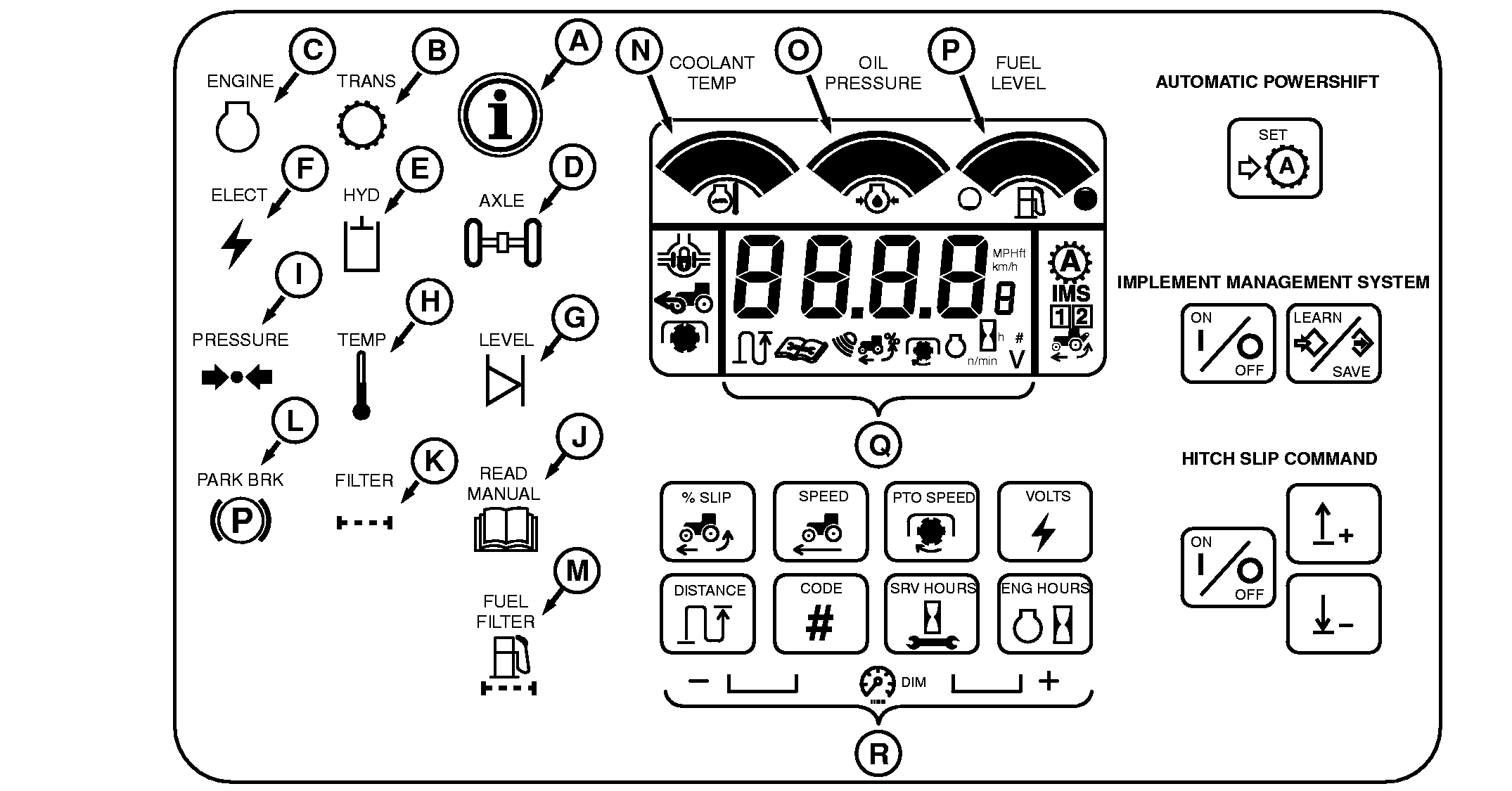

| KEY | INDICATOR | FUNCTION |
|---|---|---|
| A | INFORMATION | Problem has developed possibly reducing performance-Continue to operate tractor and address problem when convenient-Push Code # and check displayed code-Indicator flashes in conjunction with a "SYSTEM", "FUNCTION", or "Status" indicator |
| B | Transmission | Flashes in conjunction with "PRIORITY" and "FUNCTION" indicators |
| C | Engine | Flashes in conjunction with "PRIORITY" and "FUNCTION" indicators |
| D | Axle | Flashes in conjunction with "PRIORITY" and "FUNCTION" indicators |
| E | Hydraulic | Flashes in conjunction with "PRIORITY" and "FUNCTION" indicators |
| F | Electrical | Flashes in conjunction with "PRIORITY" and "FUNCTION" indicators |
| G | Level | Flashes in conjunction with "PRIORITY" and "SYSTEM" indicators |
| H | Temperature | Flashes in conjunction with "PRIORITY" and "SYSTEM" indicators |
| I | Oil Pressure | Flashes in conjunction with "PRIORITY" and "SYSTEM" indicators |
| J | Read Manual | Lights in conjunction with "PRIORITY" indicator and "FUNCTION" indicator-See Service Sections |
| K | Filter | Flashes in conjunction with "PRIORITY" and "SYSTEM" indicators |
| L | Park Brake | Indicates when Powershift transmission is in PARK position |
| M | Fuel Filter | Indicates fuel filter restriction or low fuel pressure |
| N | Coolant Temperature | Indicates engine coolant temperature |
| O | Oil Pressure | Indicates engine oil pressure |
| P | Fuel | Indicates remaining amount of fuel-Flashes when approximately 75-95 L (20-25 gal) of fuel remains |
| Q | Digital Display * | Displays percent wheel slip, ground speed, PTO speed, distance traveled, service codes, hours since last service, electrical system voltage and total engine hours |
| R | Function Selectors | Changes digital display functions |
| * Wheel Slip, Ground Speed, and Distance Traveled requires radar for accurate reading | ||
RW29387,00000EC -19-23OCT02-2/2 |
