Operating Lights
 CAUTION:
Avoid injury caused by accidental collision with another vehicle. Always comply with traffic regulations when driving tractor on a road. Dim headlights to low-beam for oncoming vehicles. Avoid using flood lights or spot lights which could blind or confuse other drivers.
Turn on flashing warning lights whenever traveling on a highway, except where prohibited by law.
The light switch (A) has four positions and operates regardless of the key position.
| OFF POSITION |
| Switches Off All Lights |
| |
| ROAD POSITION-(B) |
| Low Beam Position: |
High Beam Position: |
| |
|
| Headlights |
Headlights |
| Amber Hazard Lights |
Amber Hazard Lights |
| Tail Lights |
Tail Lights |
| Extremity Warning Lights |
Extremity Warning Lights |
| |
| FIELD POSITION 1-(C) |
| Low Beam Position: |
High Beam Position: |
| |
|
| Headlights |
Headlights |
| Front Grille Flood Lights |
Front Grille Flood Lights |
| Rear Fender Flood Lights |
Front Grille Spot Light |
| |
Rear Fender Flood Lights |
| |
| FIELD POSITION 2-(D) * |
| Low Beam Position: |
High Beam Position: |
| |
| Headlights |
Headlights |
| Front Flood Lights |
Front Grille Flood Lights |
| |
Front Grille Spot Light |
| Rear Fender Flood Lights |
Rear Fender Flood Lights |
| Upper Side Flood Lights |
Upper Side Flood Lights |
| |
| * All Field Lights ON |
|

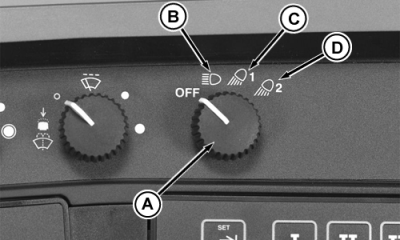

A-Light Switch
B-Road Position
C-Field Position 1
D-Field Position 2
E-Amber Hazard/Turn Lights

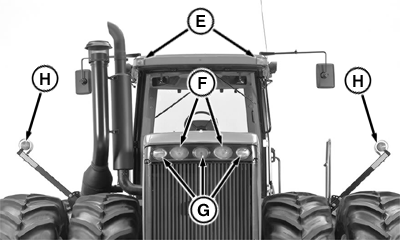

F-Headlights
G-HID Front Grille Lights, Center Spot Light (If Equipped)
H-Extremity Transport Warning Lights

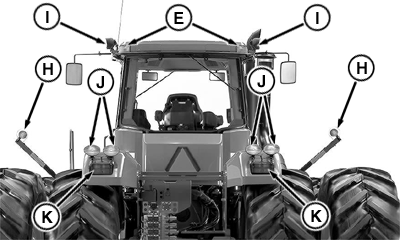

I-Upper Side Field Lights
J-Rear Field Lights
K-Red Tail/Turn Lights
|
