Operating Turn Signals, Horn, and High/Low Beam

Turn Signals:

Push lever (A) up for a right turn, or pull down for a left turn. Return lever to center position after completing turn.

Horn:

Push inward on end of lever (A) to activate horn.

High/Low Beam:

Push lever (A) forward to activate high beam headlights. Pull lever into center position to operate low beam. Pull lever toward you and release to flash high beam.

Dim headlights for oncoming vehicles. Adjust headlights correctly. (See MAINTENANCE-Electrical System Section.)

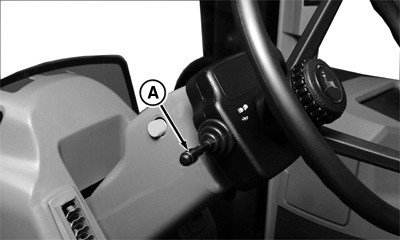

RXA0056232


A-Horn Push Button

RW29387,00000F9 -19-23OCT02-1/1
