Using Delayed Egress Lighting-If Equipped

NOTE: To cancel egress lighting turn switch back to timer position.

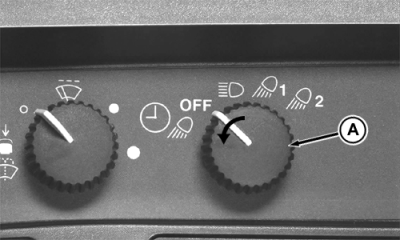

Momentarily turn light switch (A) counterclockwise from the OFF position to activate delayed egress lighting. Cancel egress lighting by momentarily again turning switch counterclockwise.

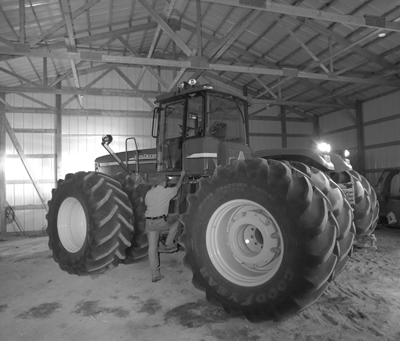

Front and rear flood lights will remain on for 90 seconds. Lights will then automatically shut off.

A-Light Switch

RW29387,00000FA -19-23OCT02-1/1
