Extremity Transport Warning Lights

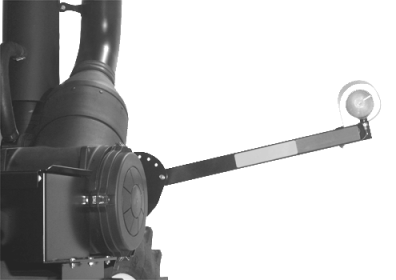

IMPORTANT: To avoid damage, extremity warning lights can be retracted for single tire operation, for operation in tall brush, or when parking vehicle in storage building. Extremity transport warning lights operate with hazard light switch "ON" or light switch in "road" position (A). Adjust warning lights to a position (B) no more than 400 mm (16 in.) from widest point of tractor. When turn signal is activated, transport warning light on turning side flashes faster, while opposite side glows solid.
|
|
CAUTION:
Extremity transport warning lights are needed when tractor width exceeds 3.7 m (12 ft). Always use road lights and transport warning lights when operating tractor on a road or highway at night OR during the day. Extremity warning lights alert other vehicles of your extended tractor width.
RW29387,00000FD -19-23OCT02-1/1 |
