Operating Rotary Beacon Light-If Equipped

Push switch (A) to activate the rotary beacon light assembly (B).

When beacon light is not used:

  • Loosen nut (C) and remove light assembly (B)
  • Install rubber protective cap on connector
  • Loosen bracket nut (D), invert beacon support, and tighten nut


A -Beacon Light Switch
B-Light Assembly
C-Nut
D-Bracket Nut

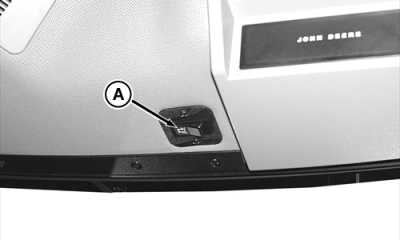

RW27013

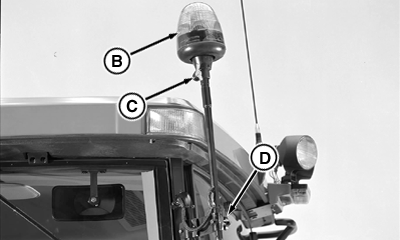

RXA0053605

RW29387,00000FE -19-23OCT02-1/1
