Using Monitor Mounts

Monitor mounting points are used to connect implement monitors to the cab.

  Mounting Locations

  A-Corner Post Display
  B-Rear Cab Post
  C-Side Console


RW26189

Corner Post

RW26659

Rear Cab Post

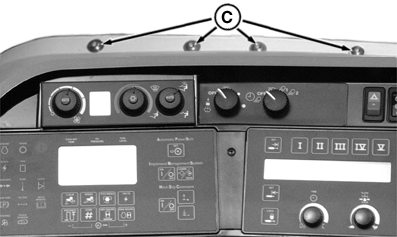

RXA0062913

Side Console

RW29387,0000117 -19-23OCT02-1/1
