Changing Starting Fluid Cans

CAUTION: Do not use starting fluid near fire, sparks, or flames. Read the caution information on the container. Protect container against damage. Do not carry starting fluid cans inside cab.

Open right side grille (9120) or front grille (9220, 9320 9420, 9520).

Remove safety cap and plastic spray nozzle from new can.

Loosen canister holder (A) to remove old can.

Install new can and tighten canister holder.

IMPORTANT: Avoid drawing dust into engine. Always keep a starting fluid can in position, or clean bottom of canister holder and install bottom side up (B).

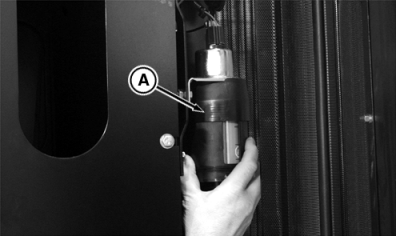

A-Canister Holder

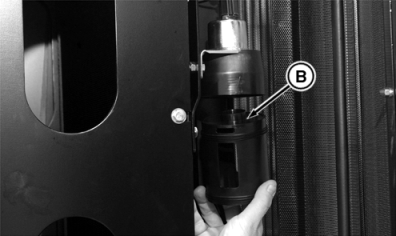

B-Starting Fluid Canister

RW29387,000011E -19-23OCT02-1/1
