Using Engine Coolant Heater

causym CAUTION: To avoid electrical shock or fire, use 3-wire, 14 AWG (14 gauge), heavy-duty electrical cord with 15-amp rating, suitable for outdoor use. Always plug electrical cord into a ground fault protected, 110-volt outlet.

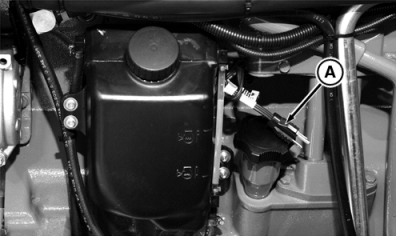

Connect the heater plug (A) to a ground fault protected 110-volt electrical outlet.

NOTE: Extremely cold weather may require 5-8 hours to heat engine.
