Using Differential Lock-If Equipped

NOTE: During cold weather, oil may need to be warmed before differential lock will function correctly.

When one wheel starts to spin, engage differential lock by pressing switch (A). Indicator light on display panel shows engagement.

Differential lock can be disengaged by using brake pedal or decelerator button.

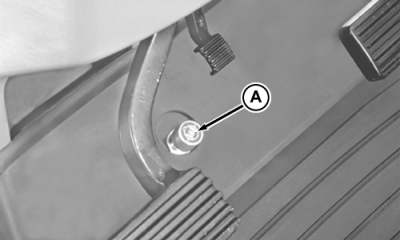

A-Differential Lock Switch

RW29387,0000128 -19-23OCT02-1/1
