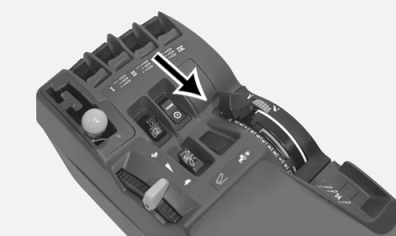

SCV Lever-Extend Position

Pull lever slightly to rear of neutral. This slowly extends cylinder at a variable flow rate as a percent of maximum flow rate (rate that was set when flow rate was set for corresponding SCV) and proportional to amount of lever travel between neutral and extend detent position. (See Adjusting Selective Control Valve Flow Rate in this section.) Lever returns to neutral and flow stops when released.

Pull the lever all the way rearward to extend the remote cylinder at maximum rate. Detent operation mode depends on the SCV detent selected. (See SCV Lever Extend Detent Position in this Section.)

NOTE: Time setting is ignored in extend position.
