Checking Neutral Start System

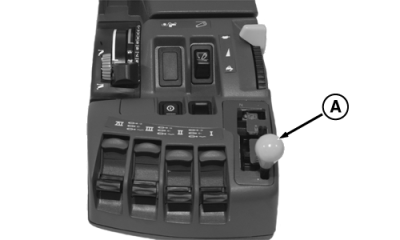

Fully depress clutch and brake pedals. Move gear shift lever (A) from PARK position to a forward gear. Attempt to start engine. Starter should NOT engage.

If starter engages, neutral start system should be repaired by your John Deere Dealer immediately . Repeat this step with transmission in a reverse gear.

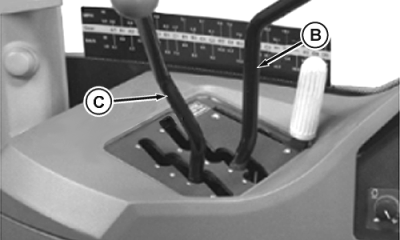

Fully depress clutch and brake pedals. Move range selector lever (B) into A-range and the speed selector lever (C) into 1 forward (24-Speed POWRSYNC). Attempt to start engine. Starter should NOT engage.

If starter engages, neutral start system should be repaired by your John Deere Dealer immediately . Repeat this step with transmission in a reverse gear.

A-Gear Shift Lever
B-Range Selector Lever
C-Speed Selector Lever

RW29387,000017C -19-23OCT02-1/1
