Checking PARK System

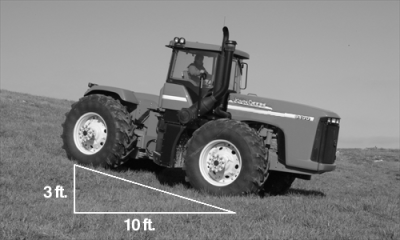

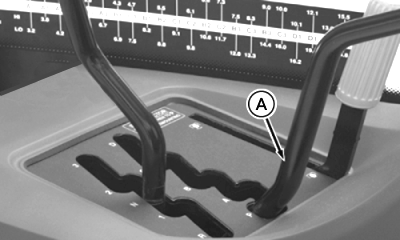

Park tractor on a 20 % incline 0.6 m (2 ft) vertically for every 3.0 m (10 ft) horizontally. Move range shift lever (A) to PARK position. Park system should be repaired immediately by your John Deere Dealer, if tractor does not hold on incline with shift lever (A) in PARK position.
|
|
RW29387,000017D -19-23OCT02-1/1 |
