Replacing Primary and Secondary Engine Air Filters

Clean or replace the primary air filter if the filter indicator light is ON.

NOTE: Replace filters at least once a year or six cleanings, or if air filter indicator remains ON.

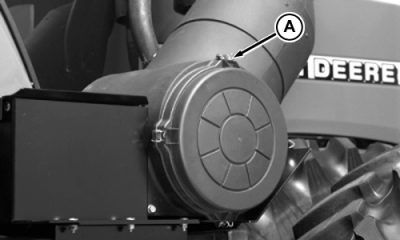

Unfasten clips (A), and remove filter cover.

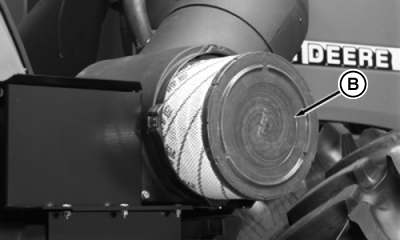

Turn and pull to remove primary filter (B).

Clean dirt from inside of canister and cover.

IMPORTANT: Do not attempt to clean secondary filter.

Replace secondary filter every second or third primary filter change.

Install new secondary filter immediately to prevent dust from entering air intake system.

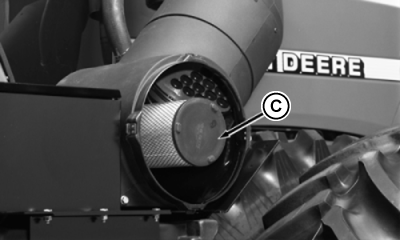

Remove secondary filter (C).

Replace filters.

A-Clips
B-Primary Filter
C-Secondary Filter

RW29387,0000180 -19-23OCT02-1/1
