Cleaning or Replacing Cab Air Filters

SERVICE INTERVAL -

CLEAN - 250 HOURS *
REPLACE - ANNUALLY

* Interval can vary according to operating conditions



causym CAUTION: The air quality system air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals.

Recirculation Filter

Remove filter cover (A) behind the seat and remove air filter (B). Replace or clean using compressed air. In dusty conditions, this service may be required more often.

RW26590
RW26591


A-Filter Cover
B-Air Filter

RW29387,0000181 -19-23OCT02-1/2

Cab Air Filter

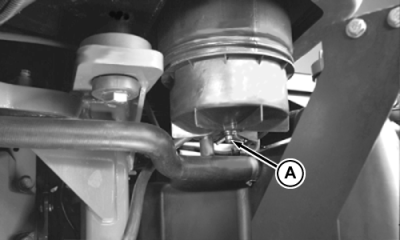

Remove wing nut (A) from cover.

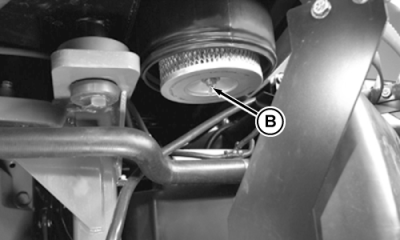

Remove wing nut and air filter (B).

Clean with compressed air or replace.


A-Wing Nut
B-Air Filter

RW56210A
RW56211A

RW29387,0000181 -19-23OCT02-2/2
