Changing Transmission/Axle Oil-24-Speed POWRSYNC Transmission

IMPORTANT: Prevent premature axle failure. Carefully follow drain and fill procedure.

2. Remove plug (A) and drain transmission.

3. Remove plug (B) and clean sump screen.

4. Reinstall sump screen and plug (B).

5. Drain both axles (three plugs on each axle) (C) and (D).

6. Drain PTO drop box, if equipped.

7. Install all drain plugs.

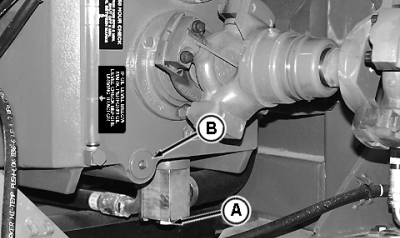

A-Transmission Drain Plug
B-Sump Screen Plug
C-Axle Drain Plugs
D-Axle Drain Plugs

RW29387,000018D -19-23OCT02-1/2

8. Remove two axle plugs (D) and (E) for filling purposes.

9. Fill transmission with transmission-Hydraulic Oil at fill tube (A). Oil level should be between marks (B) on sight glass.

10. Put transmission in PARK position and operate engine at 900 rpm, to pump oil to axles. Stop engine when oil is at mark (C).

11. Add oil again until oil level reaches upper marks (B).

12. Operate engine at 900 rpm until oil flows from open ports (D) and (E).

13. Stop engine and install axle plugs (D) and (E).

14. Again fill transmission to upper full mark (B).

15. With tractor on level ground, operate engine at 2100 rpm, with transmission in PARK for 5 minutes.

16. Stop engine and allow the oil level to stabilize in the sight glass for 5 minutes.

17. With the engine off, recheck oil level and fill at fill tube (A) as necessary, oil should be between marks (B) when oil change is complete.

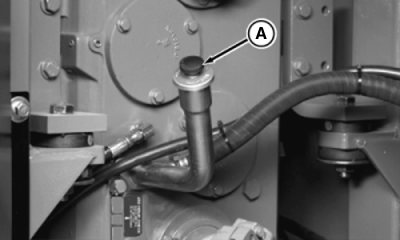

A-Transmission Fill Tube
B-Full Oil Level Marks
C-Low Oil Level Mark

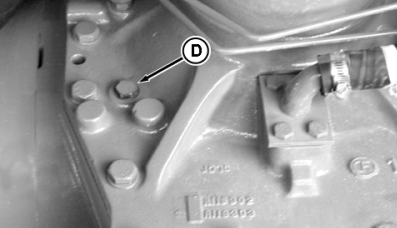

D-Front Axle DR Plug

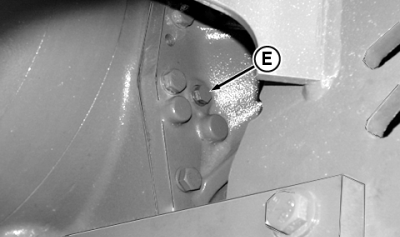

E-Rear Axle DR Plug

RW29387,000018D -19-23OCT02-2/2
