Replacing Transmission/Axle Oil Filter-24-Speed POWRSYNC Transmission

Remove transmission oil filter (A). Install new filter and tighten one-half turn after packing contacts filter housing base.

Check transmission oil level and fill as required.

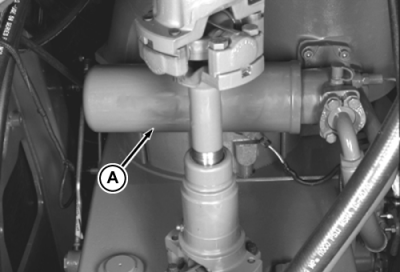

A-Transmission/Axle Oil Filter

RW29387,000018E -19-23OCT02-1/1
