Replacing Transmission/Axle Oil Filter-18-Speed Powershift Transmission

NOTE: If transmission shift characteristics change after transmission filter change, recalibrate the transmission. See your John Deere Dealer.

A drain pan is recommended for 1.9 L (2 qts) oil spillage when changing the transmission oil filter.

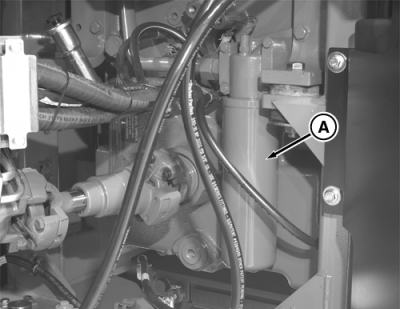

Remove transmission oil filter (A). Install new filter and tighten one-half turn after packing contacts filter housing base.

Check transmission oil level and fill as required using HY-GARD JDM J20C Oil ONLY.

A-Transmission/Axle Oil Filter

RW29387,0000190 -19-23OCT02-1/1
