Lubricating Hinge Pins-Scraper Tractor

CAUTION: Stop engine and remove key before working in hinge area.

Lubricate upper (A) and lower hinge pins (B) with John Deere HD grease specified in Fuels, Lubricants and Coolant Section.

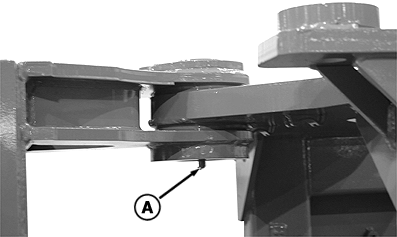

A-Upper Hinge Pin

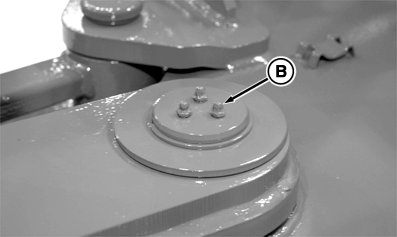

B-Lower Hinge Pin

RW29387,0000197 -19-23OCT02-1/1
