Lubricating Telescoping Drive Shaft

SERVICE INTERVAL - 250 HOURS

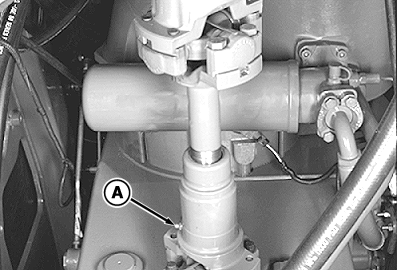

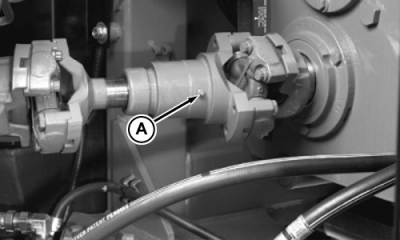

Lubricate telescoping drive shaft (A).

A-Drive Shaft

RW56174A

RXA0062957

RW29387,000019B -19-23OCT02-1/1
