Lubricating PTO Drive Shaft

SERVICE INTERVAL - 250 HOURS



Lubricate PTO front shaft (A) and rear shaft (B).

Use John Deere HD Non-Clay Grease as specified in Fuels, Lubricants and Coolant Section.

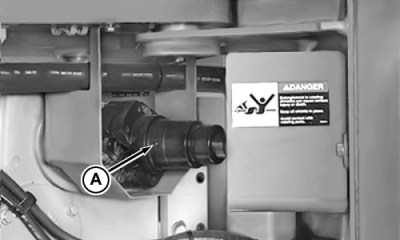

A-PTO Front Shaft

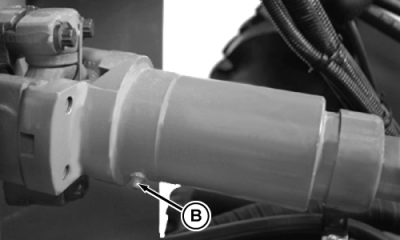

B-Rear Shaft

RW56176A
RW56177A

RW29387,000019E -19-23OCT02-1/1
