Checking Coolant Level

SERVICE INTERVAL - DAILY OR 10 HOURS



Engine stopped.

Check coolant level. Level should be at or slightly above lower mark with cold engine.

Add coolant to overflow tank if needed.

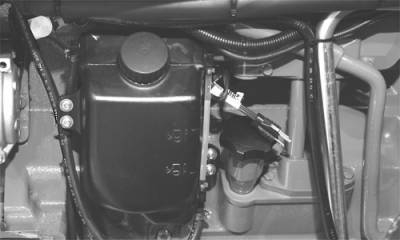

RXA0052062

9120 Tractor

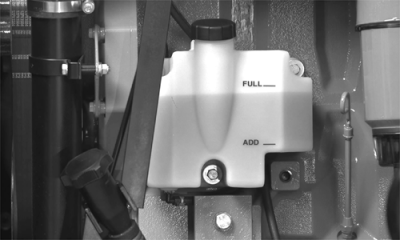

RW26155

9220-9320-9420-9520 Tractors

RW29387,000019F -19-23OCT02-1/1
