Cleaning Fuel Prefilter-Early Version-9120

SERVICE INTERVAL -

INITIAL - 100 HOURS
SCHEDULED - 750 HOURS *

* Interval can vary according to operating conditions



NOTE: Loss of power under heavy load could indicate fuel filter plugging.

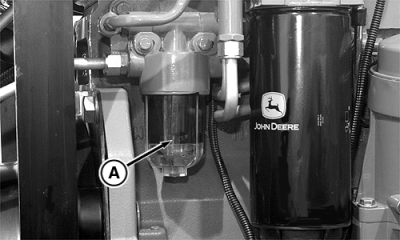

Turn glass bowl (A) counterclockwise to remove.

Remove fuel strainer and clean by back-flushing as necessary.

RXA0052948


A-Glass Bowl

RW29387,00001A3 -19-23OCT02-1/1
