OMAR183678: 9120, 9220, 9320, 9420, and 9520 Tractors, Block File: RW29387_00001A4_19

SERVICE INTERVAL - 500 HOURS or ANNUALLY *

* Interval can vary according to operating conditions

1. Thoroughly clean exterior of filter element and filter mounting area.

NOTE: Use a catch pan when draining fuel and also when removing the filter from the tractor.

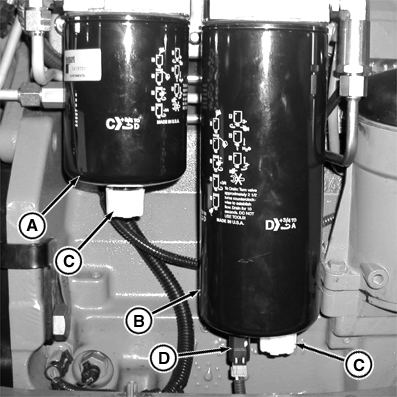

2. Drain fuel from secondary filter (A) and primary filter (B) by opening drain valves (C).

3. Close drains.

4. Disconnect sensor connector (D).

5. Remove filters from tractor. Additional fuel will drain from the filter housing.

A-Secondary Filter
B-Primary Filter
C-Drain Valve
D-Sensor

RW29387,00001A4 -19-23OCT02-1/3

6. Install filler cup (A) on new filters (B).

IMPORTANT: Avoid fuel system contamination. Do not pour fuel directly into filter without the filler cup (A) installed. Injection pump could seize.

7. Fill filter with fuel. Filter does not have to be completely full.

8. Remove and dispose of filler cup.

A-Filler Cup
B-Fuel Filter

RW29387,00001A4 -19-23OCT02-2/3

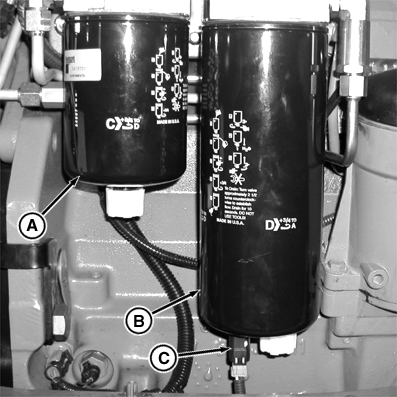

9. Install new secondary filter (A) and primary filter (B) on tractor. Hand tighten plus an additional quarter of a turn.

10. Connect sensor (C).

11. Start tractor.

A-Secondary Filter
B-Primary Filter
C-Sensor

RW29387,00001A4 -19-23OCT02-3/3
