Bleeding Fuel System-Early Version-9120 Single Filter System

1. Install clear hose assembly (A) or loosen diagnostic receptacle (B) on top of fuel filter base.

2. Push the hand primer (C) 500 to 600 times until flow of fuel is free of bubbles.

3. Remove hose assembly or tighten the diagnostic receptacle (B) while gently pushing down on the hand primer. Continue operating primer until slight pressure is felt.

causym CAUTION: Avoid possible personal injury. SLOWLY loosen fittings (D) and (E).

4. Slowly loosen fittings (D) and continue operating primer (C) until flow of fuel is free of bubbles.

5. Tighten fittings (D) and continue operating primer until slight pressure is felt.

6. Slowly loosen #6 fuel line fitting (E) and push primer (C) until flow of fuel is free of bubbles.

7. Tighten line fitting (E) and continue operating primer until slight pressure is felt.

8. Start engine.

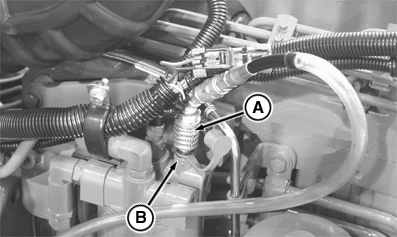

RXA0054737

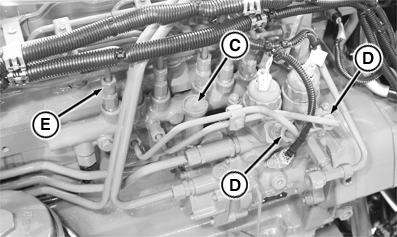

RXA0054722


A-Hose Assembly
B-Diagnostic Receptacle
C-Hand Primer
D-Fittings
E-#6 Fuel Line Fitting

RW29387,00001A5 -19-23OCT02-1/1
