Replacing Fuel Filter-9220-9320-9420-9520

Loosen and remove cap (A) on filter housing.

NOTE: Depress primer (C) to loosen filter.

Remove and discard old filter.

Depress primer (C) as necessary to refill fuel level to area between marks (B), which correspond to marks on center tube inside filter housing.

NOTE: Fuel level below the MIN mark can result in stalling. Fuel level above the MAX mark can cause fuel to overflow from the filter housing.

Install new filter and tighten cap.

Operate engine at 1200 rpm for one minute and check for leaks.

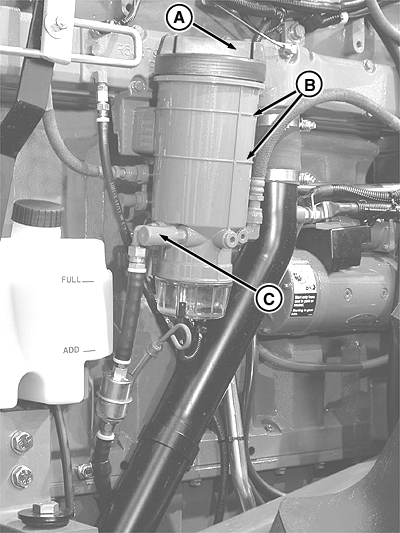

A-Cap
B-Fuel Level Marks
C-Hand Primer

RW29387,00001A7 -19-23OCT02-1/1
