Attaching Implement and Control System

causym CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines.

NOTE: Hose identification kits are available from your John Deere Dealer.

1. Identify control hoses (A).

2. Back tractor into position and attach hitch link to drawbar. Be sure hitch pin is locked into position.

3. Stop tractor engine.

IMPORTANT: Be sure to correctly connect depth control hoses to couplers. If hose connections are reversed, machine will not respond to system controls.

4. Push implement control hoses into SCV I and/or III couplers (B) as required. Extend hose always goes in left coupler.

5. Attach implement wiring harness to tractor implement connector.

RW26035
RXA0063679

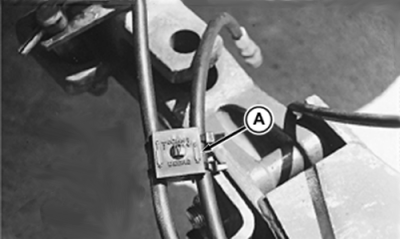

A-Hose Identification

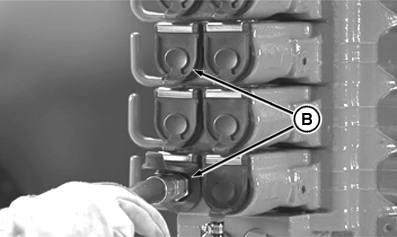

B-SCV Couplers
