Changing Hydraulic Oil

SERVICE INTERVAL - 1500 HOURS



Remove plug (A) and drain the hydraulic oil reservoir.

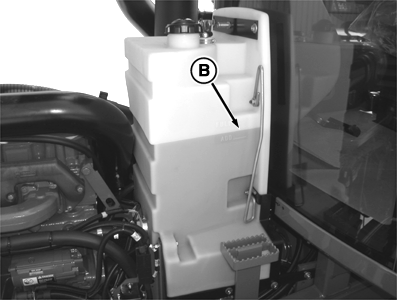

Fill reservoir with HY-GARD Hydraulic Oil between marks on sight gauge (B). Tractor should be on level ground.

Operate engine at 1500 rpm for approximately 5 minutes to pump oil through the system.

Capacities

Standard Without Hitch ... 103 L (27 gal)
Standard With Hitch ... 106 L (28 gal)
High Flow Without Hitch ... 113.5 L (30 gal)
High Flow With Hitch ... 117 L (31 gal)




Add oil to the reservoir keeping the level within the bottom of the sight gauge. Continue to add oil to the reservoir until the level stops changing at the bottom of the sight gauge.

Operate the engine at low idle for 5 minutes with the transmission in PARK position.

Add oil as required until sight gauge level remains between sight gauge marks.


A-Drain Plug
B-Sight Gauge

RXA0052028

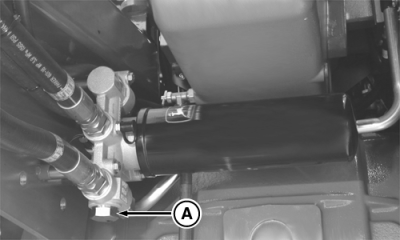

Standard Hydraulic System

RXA0065035

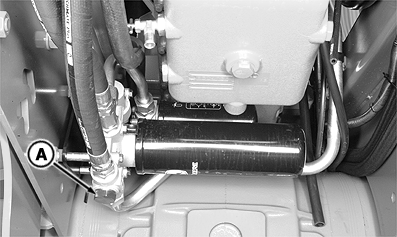

High Flow Hydraulic System

RXA0061919

RW29387,00003A7 -19-12MAR03-1/1
