Lubricating Steering Pin Bushings-If Equipped

SERVICE INTERVAL - DAILY OR 10 HOURS



causym CAUTION: Stop engine and remove key before working in hinge area.

Lubricate front (A) and rear (B) steering pin bushings with John Deere HD grease specified in Fuels, Lubricants and Coolant Section.


A-Front Pin
B-Rear Pin

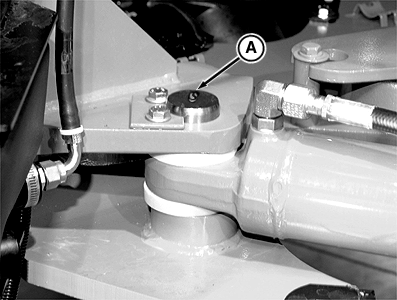

RXA0071076

Front Steering Cylinder Pin

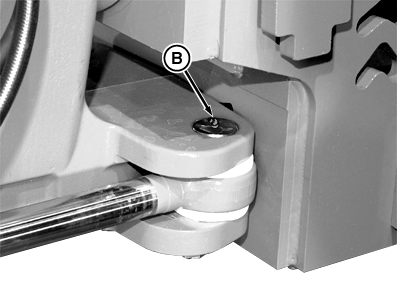

RXA0071079

Rear Steering Cylinder Pin

RW29387,00003AA -19-12MAR03-1/1
