Lubricating Hinge Pins

CAUTION: Stop engine and remove key before working in hinge area.

NOTE: Hinge pin lubrication points are the same for both steel and cast gudgeon.

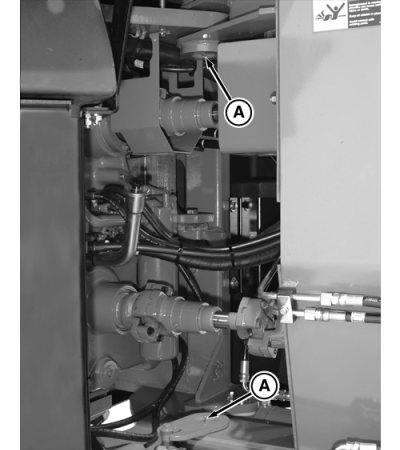

Lubricate upper and lower hinge pins (A) with John Deere HD grease specified in Fuels, Lubricants and Coolant Section.

A-Hinge Pins
