GREENSTAR™ System Connections

Connectors (A), (B), and (C) are behind the corner post cover.

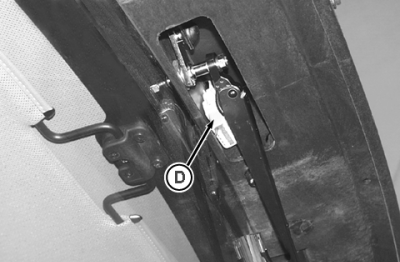

Connector (D) is under the cab roof below the front wiper motor.

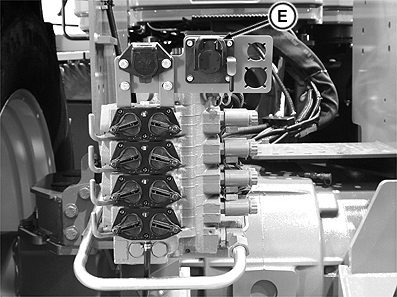

Connector (E) is located at the rear of the tractor.

See your John Deere Dealer for installation assistance.


A-Display Monitor Connector
B-Mobile Processor Connector
C-Corner Post Display Connector
D-GPS Receiver Connector
E-Implement Connector

RXA0051584
RW60518
RXA0070861

GREENSTAR is a trademark of Deere & Company

RW29387,000048A -19-20SEP03-1/1
