Connecting and Disconnecting Hydraulic Hoses

CAUTION: Push transport lock touch switch (A) on SCV TouchSet monitor before attaching or detaching implements to prevent implement movement and possible personal injury.

IMPORTANT: Hydraulic hoses can fail due to physical damage, kinks, age and exposure. Check hoses regularly.

Be sure hose ends are clean prior to use to minimize hydraulic system contamination.

Clean dust covers (B). Lift dust covers upward to expose coupler ports.

NOTE: Remote cylinder couplers are designated "I" through "V". "I" is the bottom coupler.

Check to be sure connection on coupler matches cylinder travel direction required.

When using SCV with single acting cylinders, plug hose into extend side of coupler (D).

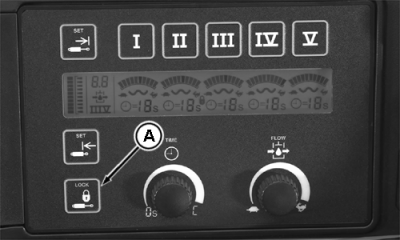

A-Transport Lock Touch Switch

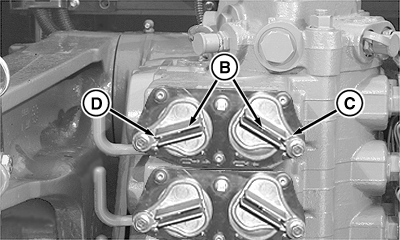

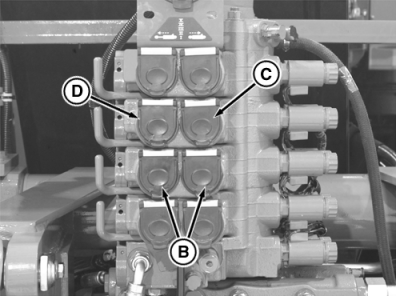

B-Dust Covers
C-Retract Side
D-Extend Side

RW29387,000048F -19-20SEP03-1/2

Move SCV switch to neutral position with no time flow "commanded". Push hose firmly into receptacle.

Before disconnecting cylinder hoses, lower implement to the ground.

NOTE: To relieve hydraulic pressure in implement, move SCV control switch to float position, while engine is operating.

Push lever forward to release the retract hose and pull lever back to release the extend hose.

Pull hose (A) straight out from receptacle.

Push dust cover back into SCV receptacle. (Early Version)

Turn dust cover back over SCV receptacle. (Late Version)

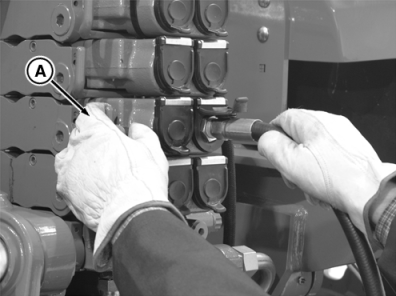

A-Hose Release Lever

RW29387,000048F -19-20SEP03-2/2
