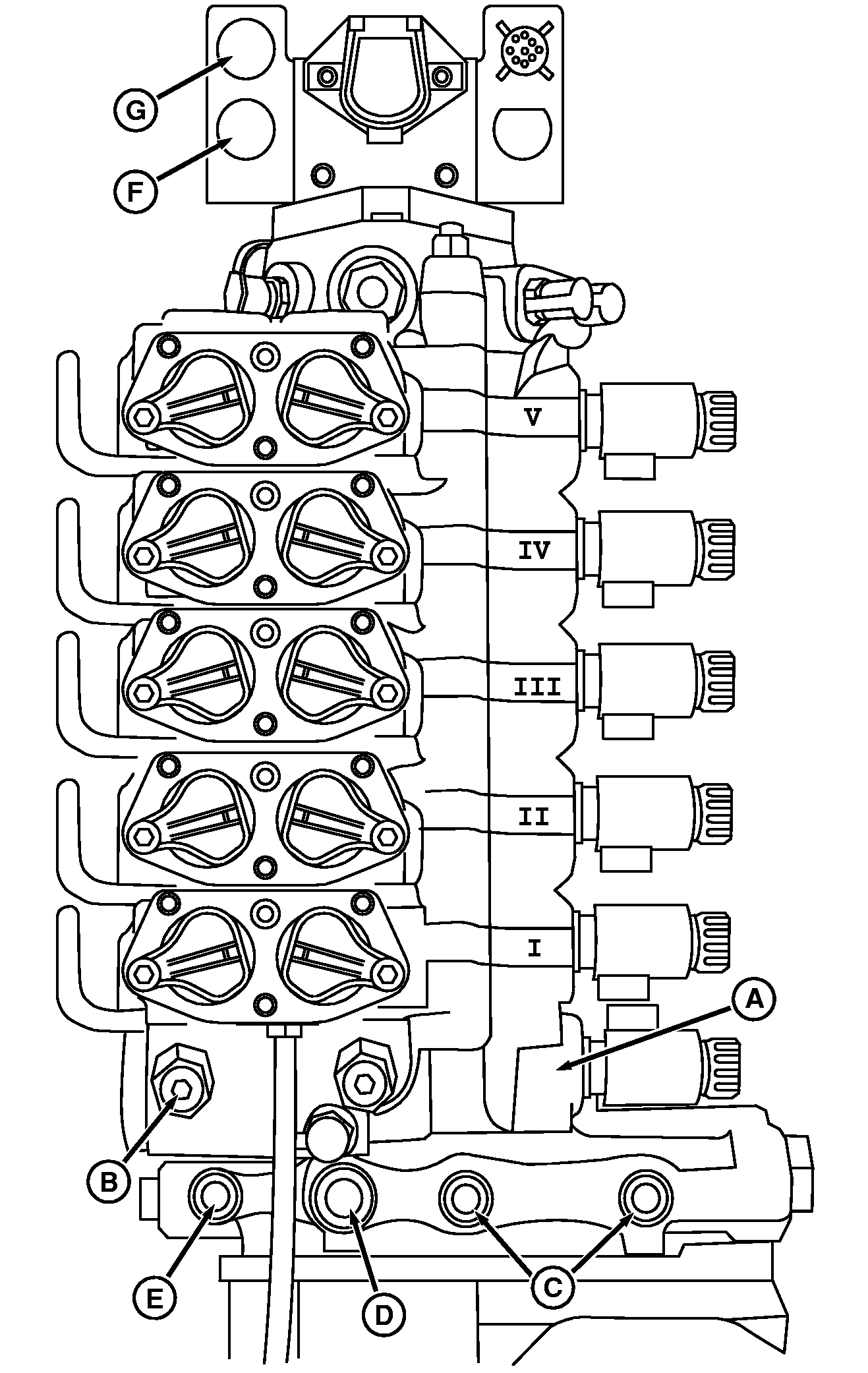

Standard Hydraulic Component Identification-With Hitch

RXA0071013


A-Hitch Valve
B-Hitch Valve Pressure Port
C-Hitch Return Ports


D-Power-Beyond Return Port
E-Power-Beyond Pressure Port


F-Power-Beyond Load Sense Coupler


G-Motor Seal Drain Port

RW29387,0000499 -19-25SEP03-1/1
