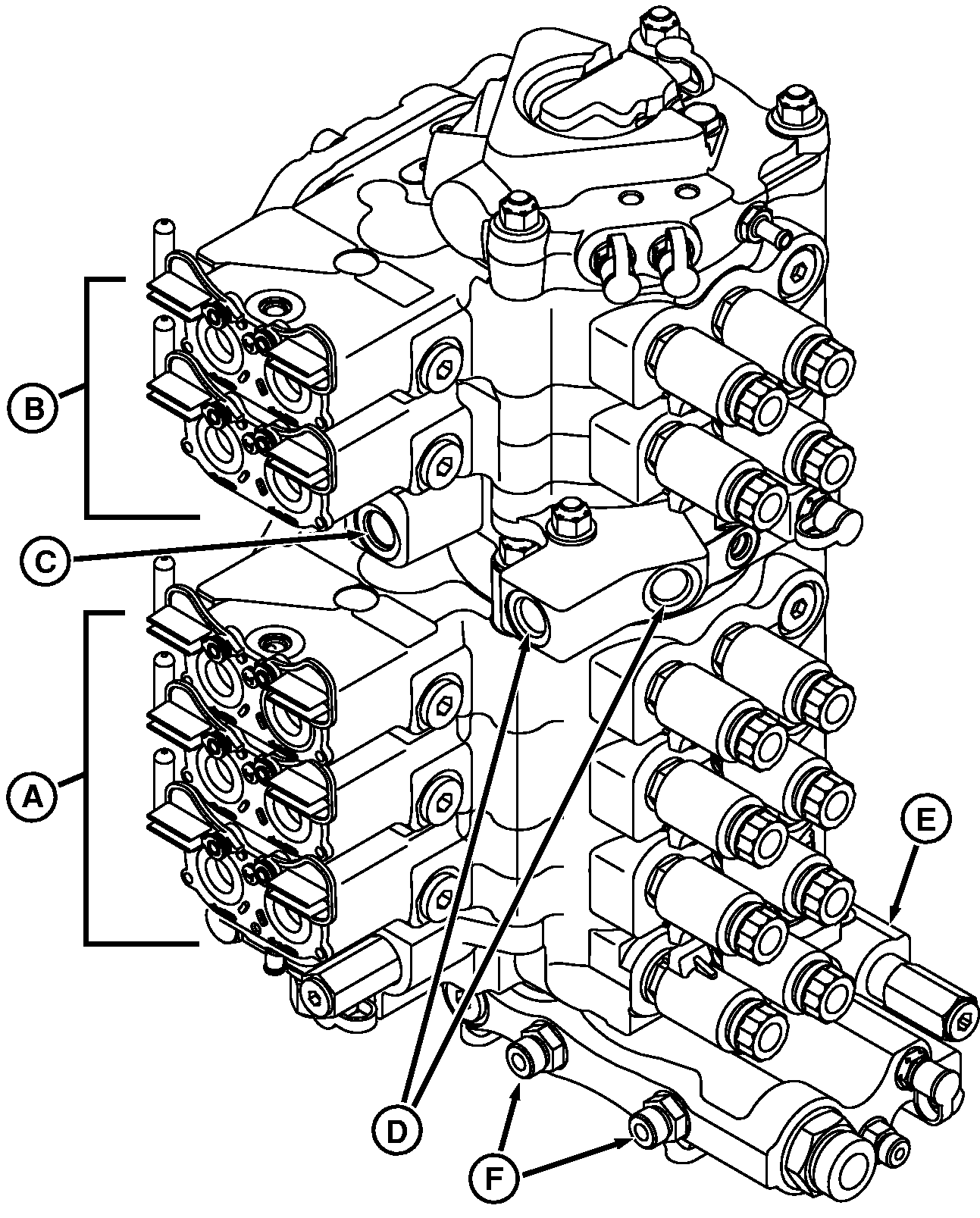

High Flow Hydraulic Component Identification-With Hitch

RXA0070932


A-Bottom SCV Stack
B-Top SCV Stack


C-Low Flow Pressure Port
D-Low Flow Return Ports


E-Hitch Valve
F-Hitch Return Ports


-Hitch Valve Pressure Port (Not Shown)

RW29387,0000499 -19-25SEP03-1/1
