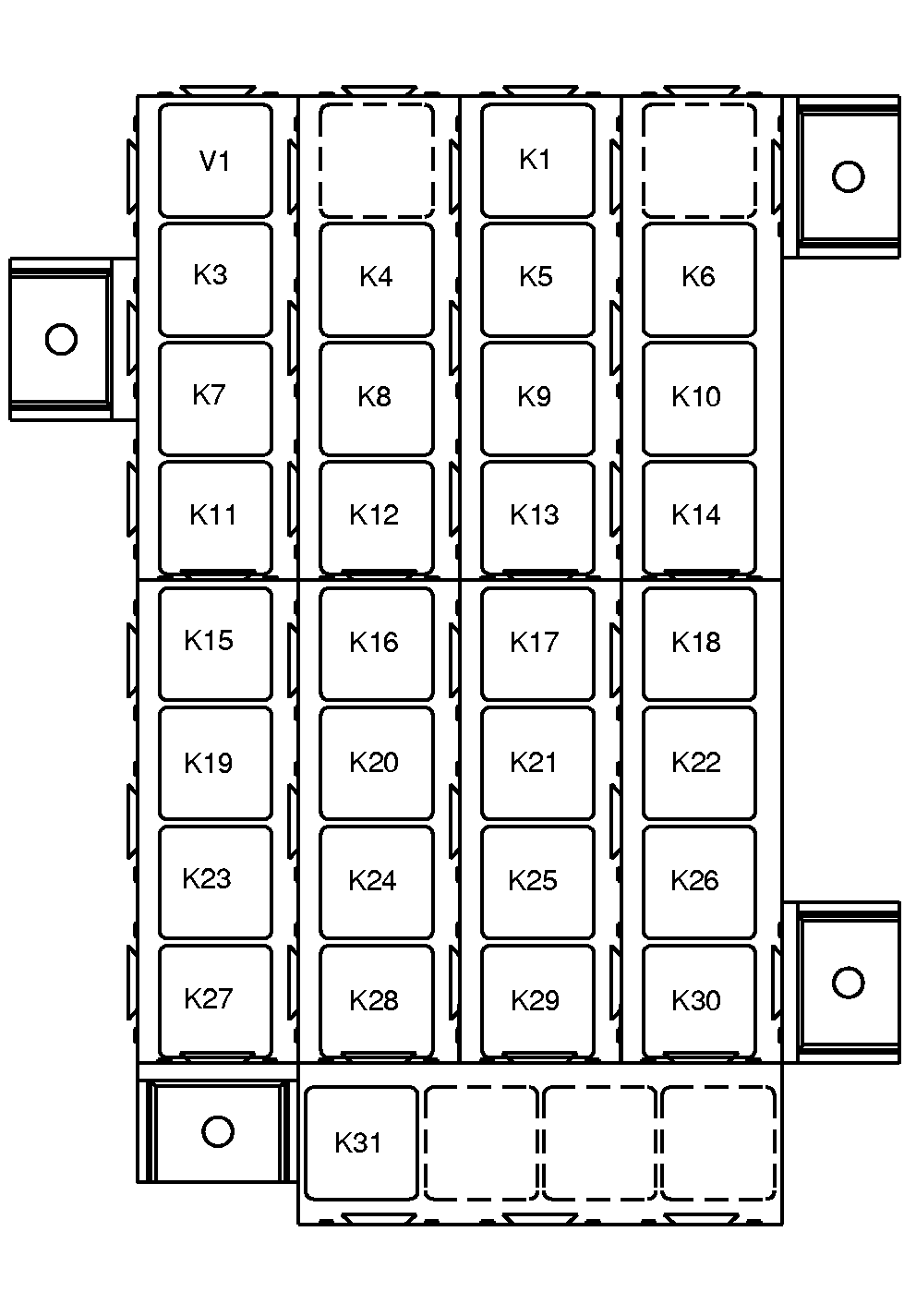

Load Center Relays and Diodes (Serial No. -009999)
NOTE:
Relays Not on Load Center-Starter, Back-up Alarm, Universal Monitor, and GreenStar Implement Harness Power
V1-Diode Block #1
K1-High Beam Lights
K3-Roof Flood Lights (Optional)
K4-Front Grille Flood Light
K5-Rear Flood to 7-Way Accessory Outlet Only
K6-Transmission Come Home (No. 1)
K7-Rear Fender Flood Lights
K8-Right Fender Turn Lights
K9-Left Fender Turn Lights
K10-Fender Turn Lights
K11-Low Beam Lights
K12-7-Way Accessory Outlet (Accessory Power)
K13-Engine Controller
K14-Front Grille Spot Light
K15-ELX (Electronics)
K16-Transmission Clutch Override *
K17-Transmission Latch *
K18-Transmission Enable *
K19-Transmission Calibration Mode *
K20-Transmission Reverse *
K21-Transmission Forward *
K22-Transmission Not Neutral *
K23-Horn
K24-Wiper Circuit
K25-Intermittent Wiper Pulse
K26-Intermittent Wiper Enable
K27-Accessory
K28-Blower Motor Circuit
K29-Transmission Come Home (No. 2)
K30-Pressurizer Blower Motor, Air Conditioner Compressor Clutch
K31-K14 Grounding Relay for Front Grille Spot Light
* -* 18-Speed Powershift
|
