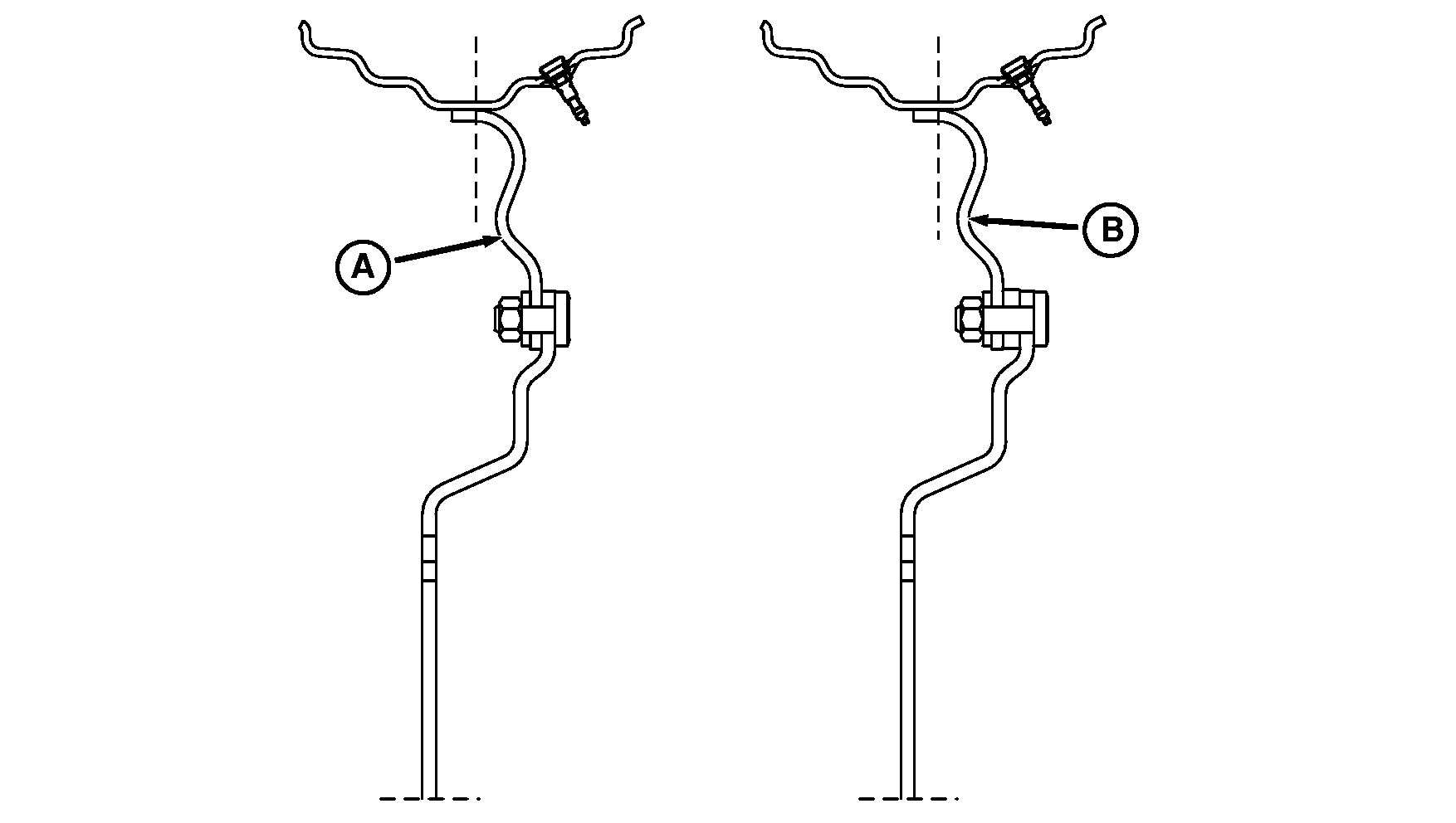

Determining Rim Type-Rear Tires

A-Eight Position Rim

B-Sixteen Position Rim

A sixteen position wheel can be identified by the use of a spacer in the rim to disk bolted joint. The spacer

can be located either under the nut and washer or between the disk and rim flange.
