Positioning Center Link

IMPORTANT: Excessive power can damage an implement, and too large an implement can damage the tractor.

Tractor is recommended for Category 3 or 3N implements with heavy draft or heavy transport loads. Category 2 implements are not recommended for use on this tractor.

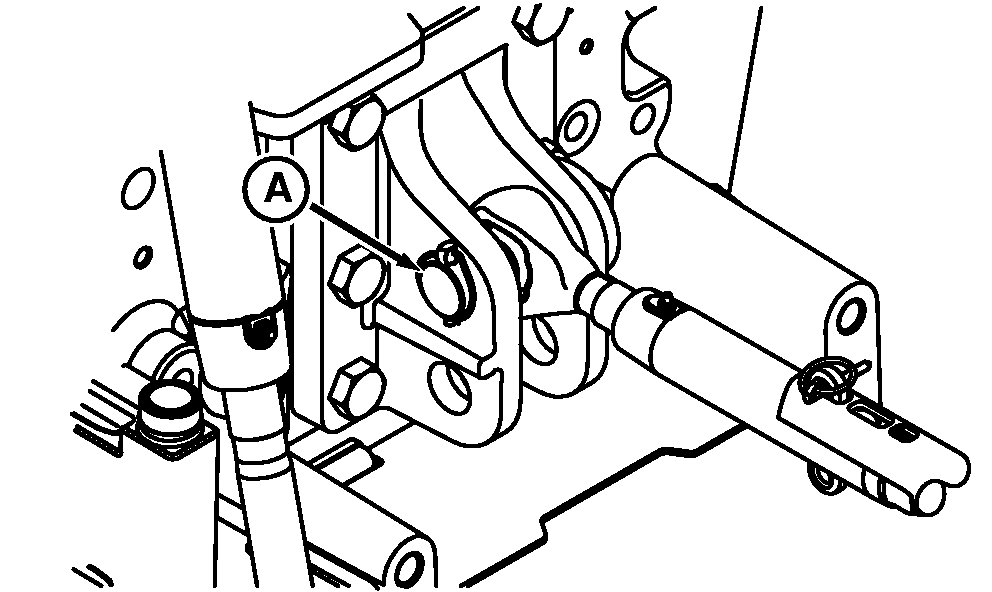

If equipped with bracket having two holes, attach center link to upper hole (A) only.

A-Upper Hole

OUMX005,00015C3 -19-03APR03-1/1
